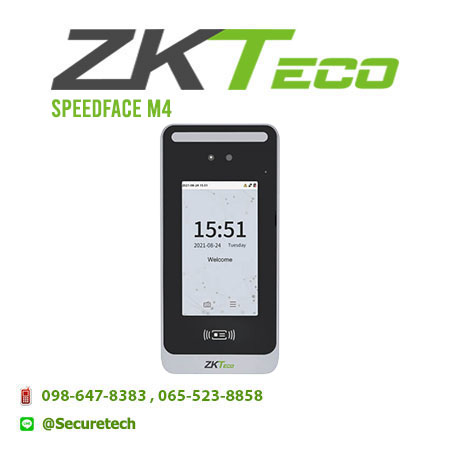

Access Control รุ่น SpeedFace M4

Display 5" Touch Screen

Face Capacity 6,000

Palm Capacity 3,000

Card Capacity 10,000

Transaction Capacity 200,000（Optional: 500k）

Functions ID Card, ADMS, DNS, T9 Input, DST, Camera, 9-digit User ID, Advance Access Control, Groups, Holidays, Anti-passback, Record Query, Tamper Switch Alarm, Bell Scheduling, POE (Optional, IEEE 802.3at-2009)

Hardware 1GHz Dual Core CPU 1G RAM / 8G Flash 2MP WDR Low Light Camera Adjustable LED Supplement Lighting Rain Cover (Optional)

Communication TCP/IP, Wi-Fi (Optional), Wiegand Input / Output, RS485

Access Control Interface 3rd-party Electric Lock, Door Sensor, Exit Button, Alarm Output, Aux. Input

Optional Card Module IC / HID / iClass / Felica / Desfire EV1 / EV2 / Legic

Biometrics Algorithm ZKFace V5.8 & ZKPalm V12.0

Ingress Protection Rating IP66

Power Supply Voltage: DC 12V Current: Max. 3A

Operating Humidity 10% to 90%

Operating Temperature -30°C to 60°C

Dimension 103.83 * 212.41 * 50.60 (mm) (W*H*D)

Supported Software ZKBio Access IVS
