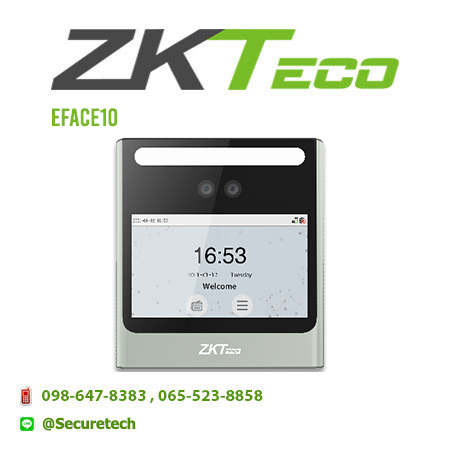

ZKTeco | Face T&A Device รุ่น EFace10

Display 4.3-inch Touch Screen

Face Capacity 500 (Optional:1,500)

User Capacity 1,000 (Optional:1,500)

Card Capacity 1,000(Optional),Max.1500

Transaction Capacity 150,000

Communication TCP/IP, Wi-Fi (Optional), USB Host

Standard Functions ADMS, Work Code, DST, Self-service Query, Automatic Status Switch, T9 Input, Camera, 9-digit User ID, Multiple Verification Methods, Bell Scheduling

Hardware 1GHz Dual-Core CPU, 256MB RAM / 512MB ROM, 1MP Binocular Camera

Operation System Linux

Interfaces of Access Control 3rd Party Electric Lock, Door Sensor, Exit Button

Optional Functions 125KHz ID Card (EM) / 13.56MHz IC Card, Battery Backup, Cable Box for Battery Installation and Storage

Biometrics Algorithms ZKLiveFace V3.5

Fingerprint Capacity ≤1s

Power Supply 12V 1.5A

Operating Humidity 20% to 80%

Operating Temperature 0°C to 45°C

Dimension 130 * 119 * 28 (mm) / 130*119*55 (mm) (W*H*D)

Supported Software ZKBio Access IVS (T&A)
